Short Description:

Overview Quick Details Use: Weaving Machinery Type: M5 module Electromagnet valves assembly Warranty: 3 months Condition: New Applicable Industries: textile spare parts Video outgoing-inspection: Not Available Machinery Test Report: Not Available Marketing Type: Ordinary Product Place of Origin: Zhejiang, China Brand Name: topt Quality: Guaranteed Color: black Material: Metal and plastic Name: Weaving Machinery Product name: m5 mo...

Product Detail

Product Tags

Overview
Quick Details
Use:
Weaving Machinery
Type:
M5 module Electromagnet valves assembly
Warranty:
3 months
Condition:
New
Applicable Industries:
textile spare parts
Video outgoing-inspection:
Not Available
Machinery Test Report:
Not Available
Marketing Type:
Ordinary Product
Place of Origin:
Zhejiang, China
Brand Name:
topt
Quality:
Guaranteed
Color:
black
Material:
Metal and plastic
Name:
Weaving Machinery
Product name:
m5 module electronic jacquard
Package:
carton
MOQ:
10
Application:
Textile
Item Name:
m5 module
Usage:
Weaving Machinery
After Warranty Service:
Video technical support
Local Service Location:
None
Showroom Location:
None

Working principle of jacquard machine:
On the jacquard machine, the pattern plate is sleeved on the flower tube. Each weft turns over a pattern plate, and the flower tube presses against the horizontal needle once.

When there are holes on the pattern plate, the head end of the horizontal needle extends into the holes of the pattern plate and the flower tube, so that the hook end of the straight needle is still hung on the lifting knife. When the lifting knife rises, the straight needle rises, and the heald is lifted by the first thread hook and through wire. At this time, the warp thread penetrating into the heald eye is also lifted to form the upper layer of the shed.

A heald hammer is hung in the lower heald ring of heald. When the shed is closed, it plays the role of returning heald by its weight. When there is no hole on the pattern plate, the horizontal needle retreats through the convex head to push the corresponding straight needle, so that the hook end of the straight needle is separated from the lifting knife. Therefore, the heald and warp connected with the straight needle are not lifted, and the warp will sink below to form the lower layer of the shed.

Therefore, the movement of each warp is determined according to the hole or void on the pattern plate, and the hole on the pattern plate is rolled according to the design requirements of pattern and organization. Therefore, the movement of warp meets the requirements of pattern and organization.

Item

Jacquard valves m5 module

Type

M4,M5,M6

MOQ

10PCS

Specification:

Item No: Application:  Jacquard loom machine
Name: M5 module Electromagnet valves assembly Color: black



Our Good Before & After sale Service:

1.Good Quality :we cooperated with many stable factories, which can guarantee the

 good quality.

2.Competitive price: factory direct supplier with best price.
3.Quality guarantee, 100% pre-test for each item. we can return the value of the problem goods, if it is our quality factor.
4.Within 3–5 days can send out to customer checking..
5. 24 hours online and cellphone service making sure prompt response..

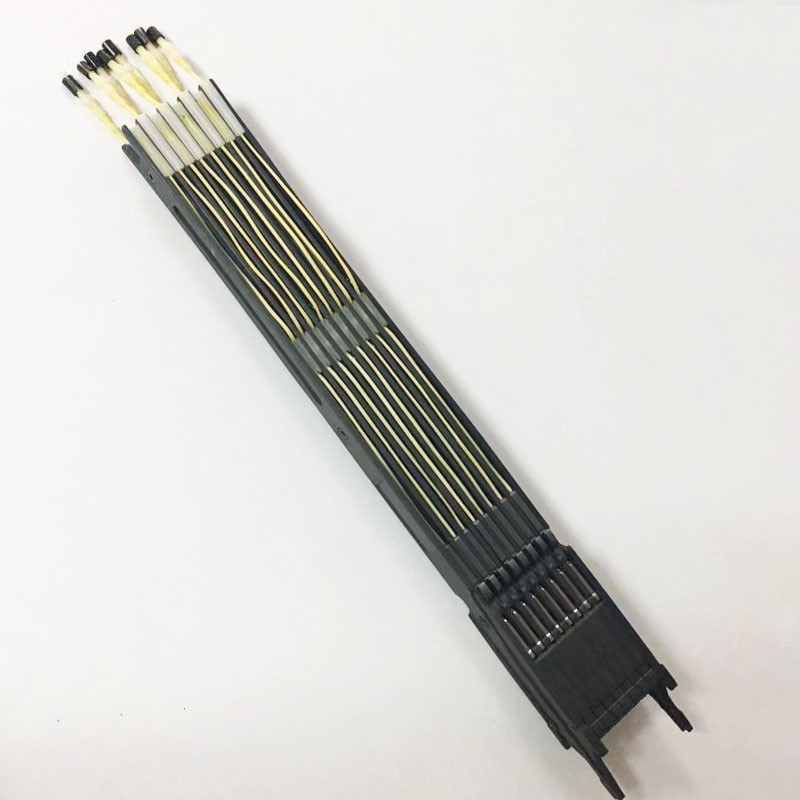

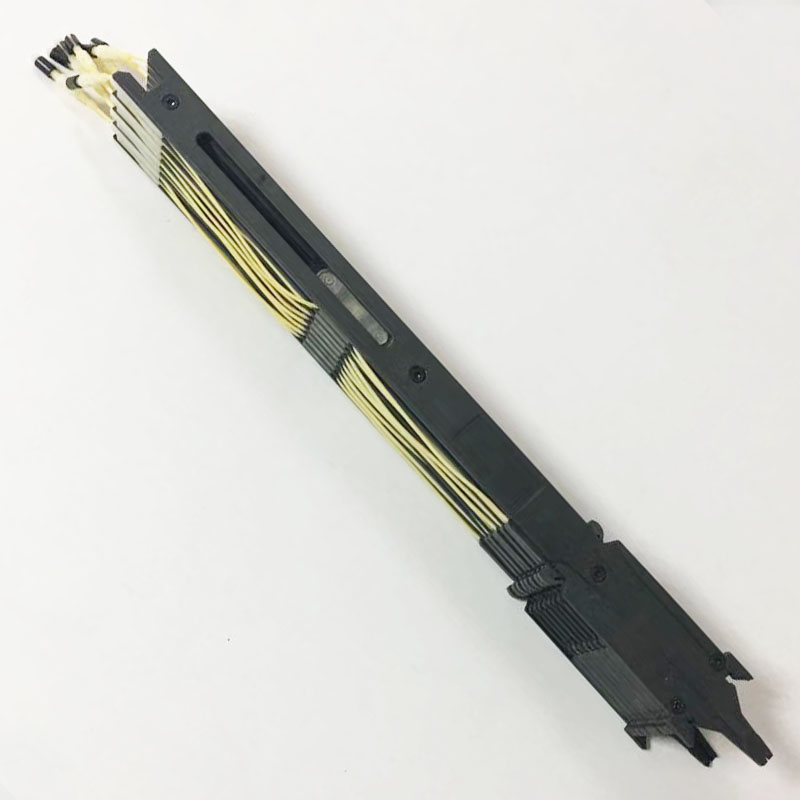

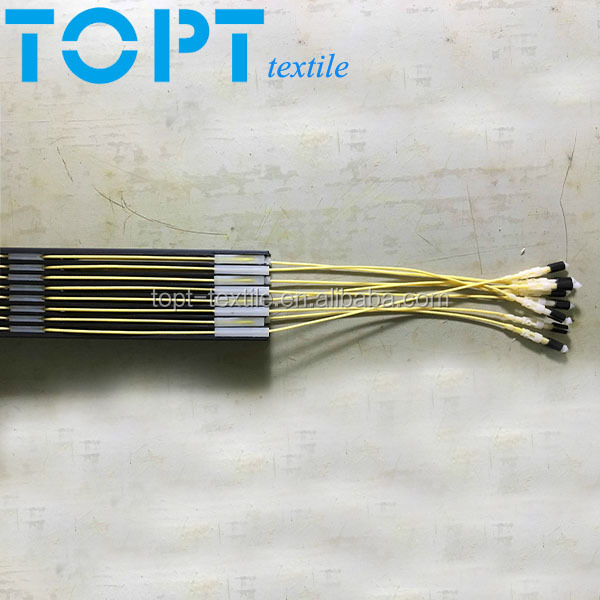

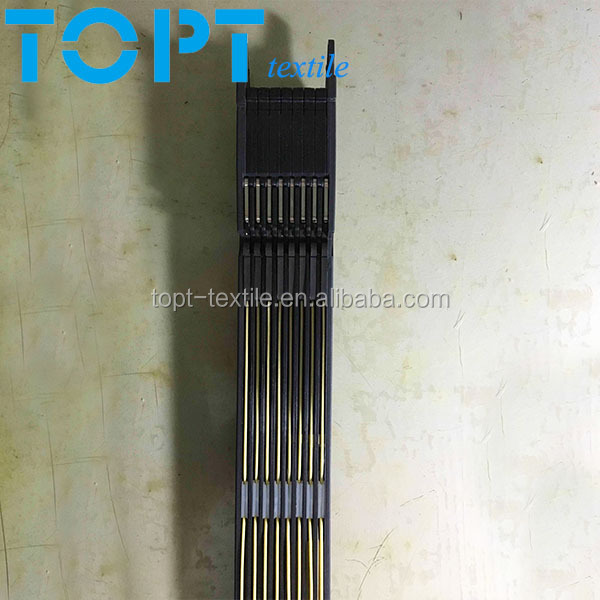

Products Image:

Weaving

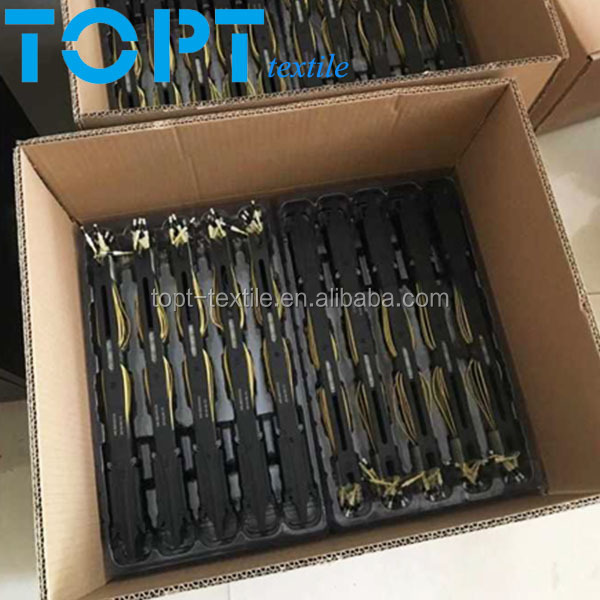

Packing and Delivery:

1.Carton package suitable for air and sea shipment.

2.Delivery normally is one week.

Contact us:

· Website:http://topt-textile.en.alibaba.com

· Contact: Liz Song

· Cellphone: 0086 15821395330

· Skype:  0086 15821395330  whatsapp: +008615821395330

  Wechat: lizisong_520



WE WILL KEEP YOU INFORMED OF OUR NEWEST PRODUCTS & WELCOME TO CONTACT US AT ANY TIME!
